OEM 19010 - RC3 - H51 Honda Aluminum Radiators FIT ' 2009 GE6 / GE8 PA16 / AT
Detailed Product Description
| Oil Cooler | Φ 22 * 325 mmmm |
| Car Type | FIT ' 2009 GE6 / GE8 |
| Core Size | PA 350 * 728 * 16 mm |
| Tank Size | 34 / 39.5 * 742 mm |
| Thickness | 16 mm |
| Core Material | Aluminium |
| Manufacturer Part Number | KJ - 17121 - PA16 |
| Carton Size | 790 * 110 * 485 |
our advantage
Professional team :
More than 10 years Technical and Sales Support team offer you the best service.
Perfect After-sale Service :
We support one-year quality guarantee after you receive the goods.
Competitive Products :
Keep close attention on new vehicles every year and develop the new parts in the shortest time.
Wide Use :
Over 5000 kinds of products , which exported all over the world .
Friendly Ideas :
We can be friends , and we do our best to make every friend ’ s business success.
Radiator Structure Chart
| Brazed Radiator Structure |
| 1. Filler Neck | 8. Side Plate | 15. KINGA Logo |
| 2. Top Header Plate | 9. Core Height | 16. Bottom Header Plate |
| 3. Inlet Pipe | 10. Fin | 17. Water switch |
| 4. Top Tank | 11. Tube | 18. Bottom Tank |
| 5. Top Mounting Pins | 12. Core Width | 19. Oil Cooler |
| 6. Fan Mount | 13. Core Thickness | 20. Outlet Pipe |
| 7. Overflow Pipe | 14. Clip | |
Paying Attention
1. Radiator should not contact with any acid , alkali or other corrosive properties .
2. It is recommended to use soft water , hard water softening treatment after use , avoid to cause the
radiator internal blockage and scale production .
3. Radiators , water to water injection in full , on the water to the engine cylinder body of the switch is
turned on , the water out , again close , so as to avoid blisters .

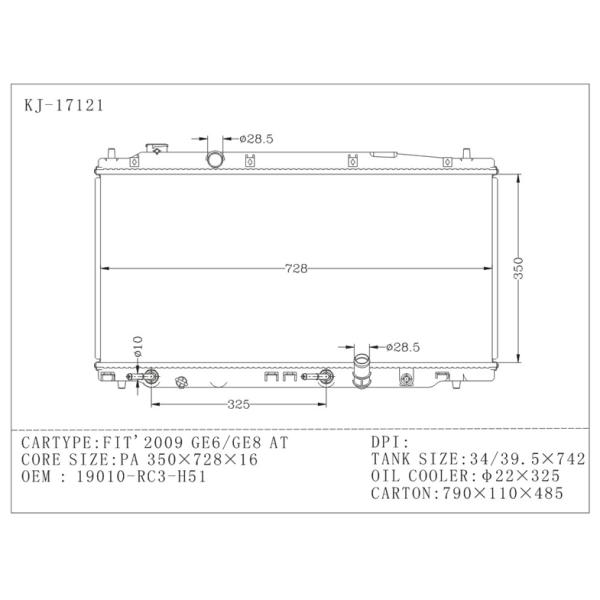

Design drawing
Compare your radiator to the picture below .
OUR RADIATOR WORKSHOP
Please feel free to contact us for any question ! Join us , this is a new beginning of the journey , you will feel the most efficient service , best quality and excellent reputation !
